Description

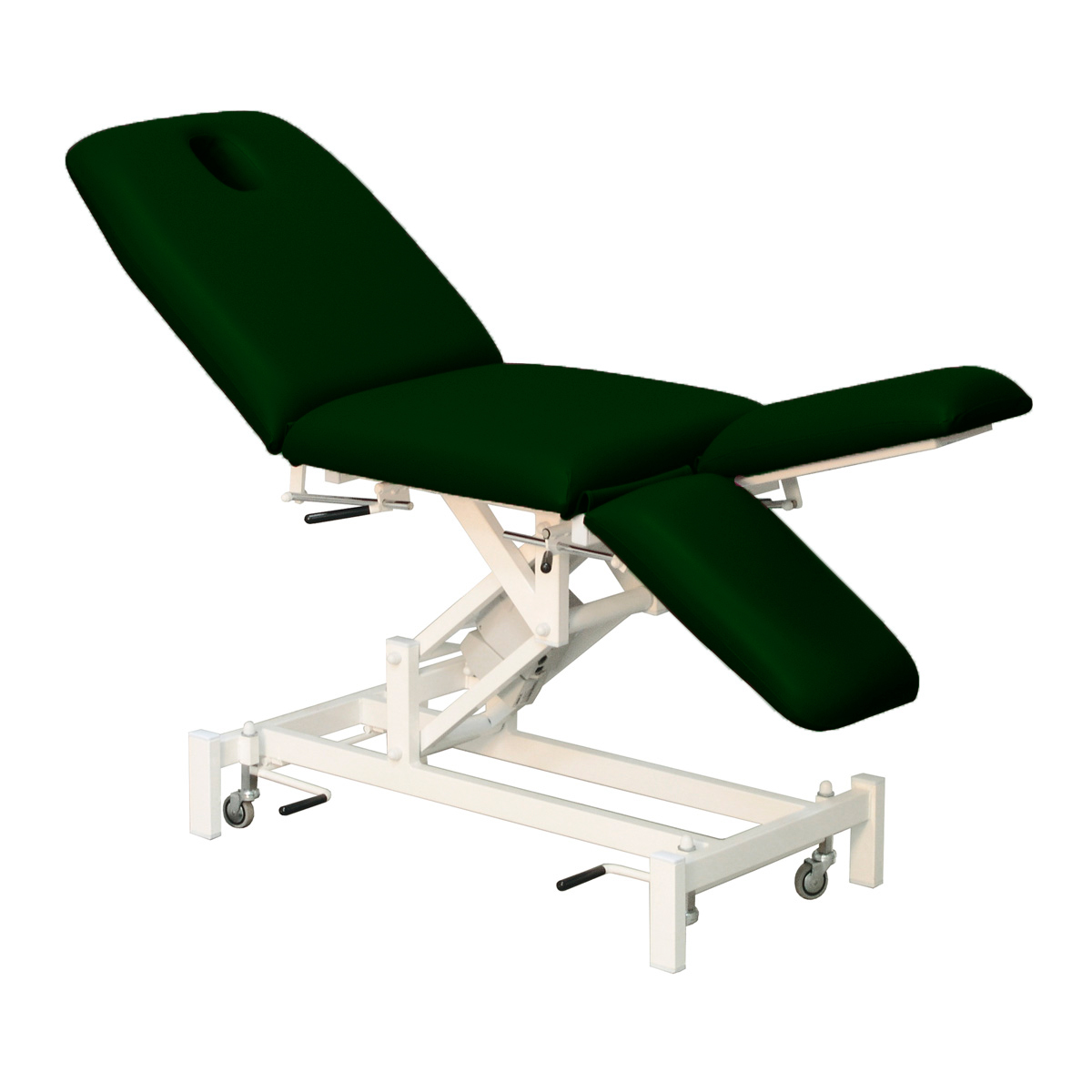

4 Sections
Face hole
Adjustable backrest +80°-15°, foot section +30°-45° by means of levers.
Foam padding 8 cm thick and density 30 kg
High quality, available in many colors
Synthetic leather fireproof, antibacterial, antifungal, waterproof,
resistant to weather and UV. It complies with European regulations.
Perfectly centered frame with lateral displacement in the height adjustment. With square steel tubes up to 50x30x2 and 3mm, with epoxy coating, oven-baked at 250 °
R-3, 5 cm retractable wheels, not suitable for transporting people 1adjustable leveling foot
APPROX. MEASURES
Length 185cm
Width 62cm
Adjustable height (68 to 101cm)
Recommended maximum supported weight: 135 Kg.
Height adjustment by electric motor with hand control
Meets European safety regulations
MOTOR: Linear actuator
Connection to the 230V AC 50Hz network
24V DC voltage
Protection IP.54
Load 6000N
5 years motor warranty (control box and controls 2)
5 years couch warranty
OPTIONS:
Facial plug
Armrest BZ-4, BZ-5, BZ-6
Paper roll holders
Electronic footswitch
R-1 wheels with brake, 10cm in diameter (suitable for transporting people).
